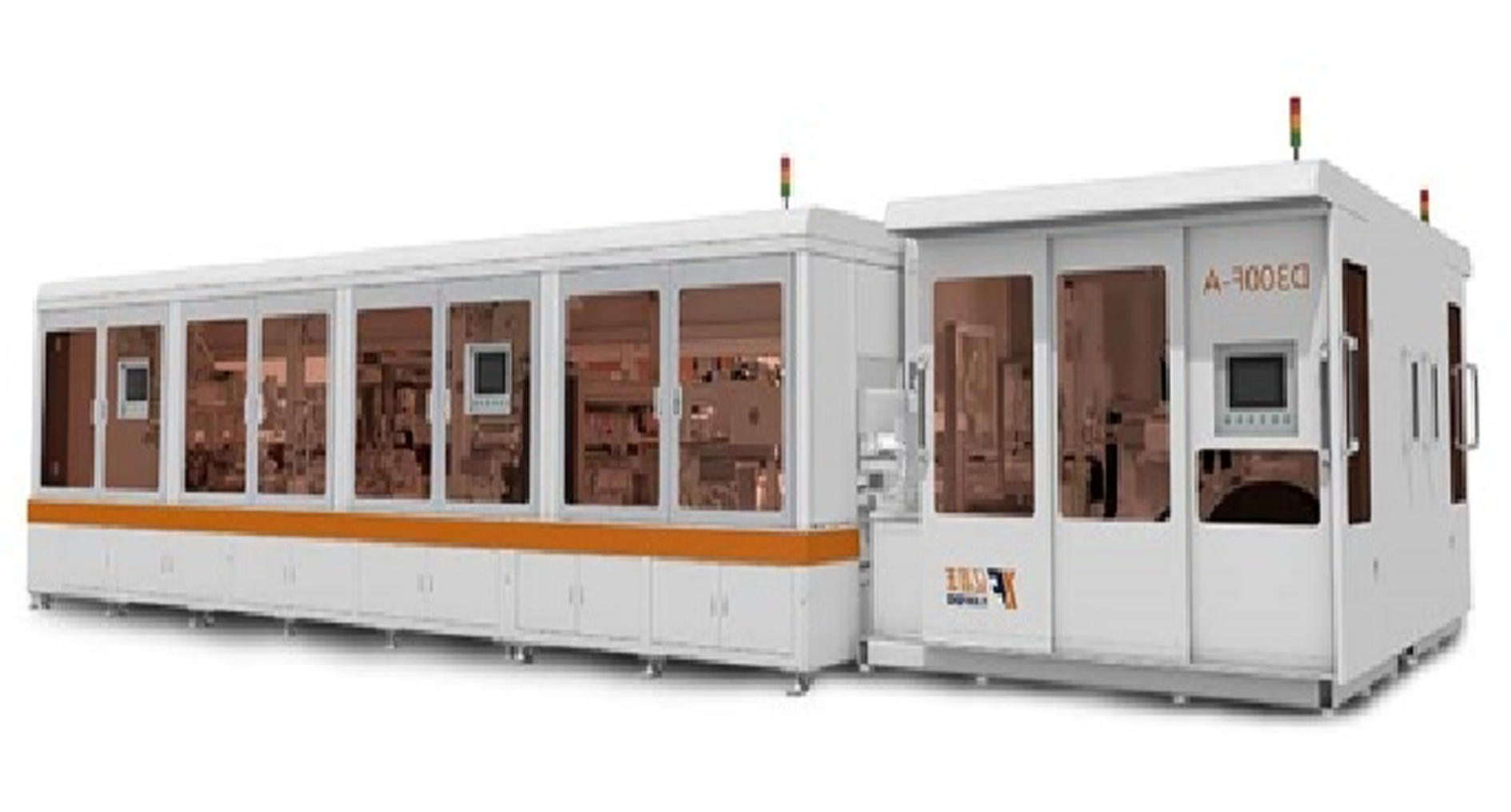

該設備將正負極片卷料先進行極耳與極片沖切，自動輸送到疊片工位，之后將正、負極極片與隔膜進行高速疊片，疊片完成后直接裁斷隔膜，貼側固定膠（U型），然后對電芯進行短路測試，將檢測合格的極組與下一道工序進行對接，不良品排出。
The equipment will be the positive and negative pole sheet coil material first for the pole ear and pole sheet punching, automatically delivered to the lamination station, and then the positive and negative pole sheet and diaphragm for high-speed lamination, lamination after the completion of the diaphragm directly cut, attach the side fixing glue (U-shaped), and then the battery short circuit test, the test qualified pole group and the next process for docking, defective products discharged.
鋰電池高速切疊一體機性能特點：
●整機設計及布局合理，疊臺、貼膠位于極片上料機構兩側，便于整機維護及輔料上料;
●采用自有知識產權的循環式連續供料方式，無極片輸送的阻滯，確保每個疊臺等節拍
●循環運輸線保證不浪費，沒有廢片產生，提高極片利用率;
●極片適應性強，避免了真空皮帶傳輸因極片大小變動不能使用的問題;
●極片運輸線比真空皮帶更穩定，避免了真空皮帶方式抓取錯位及抓取損傷極片的問題;
●集成功能：本機可集成極片尺寸及瑕疵檢測、極片刷粉功能、電芯熱壓、電芯短路測試等功能，
●疊片可選用CCD視覺定位系統，伺服電機+精密滾珠絲桿定位移動，X、Y、@定位精確，穩定性高；
●隔膜自動放卷，提高整機利用率;
●整機產生粉塵處分離式控制：如開卷，獨立一個區域、模切一個區域，并在產生粉塵比較多的區域工作，無等待現象，效率高;
提高整機的利用率;
（模切區）增加有FFU，抽出環境的浮粉，（模切區）增加有FFU，抽出環境的浮粉，
切疊一體機型號：D300F-B 模疊一體機型號：D300F-C
Lithium battery high-speed cutting machine Performance features:
● The design and layout of the whole machine is reasonable, the stack and glue are
located on both sides of the pole sheet feeding mechanism, which is easy to maintain
the whole machine and feed the auxiliary materials;
● The use of its own intellectual property rights of the cyclic continuous feeding mode,
no block of the plate delivery, to ensure that each stack beat
● The circulation transport line ensures no waste, no waste sheet is produced, and the
utilization rate of pole sheet is improved;
● Strong adaptability of the pole plate, avoiding the problem that the vacuum belt
transmission cannot be used due to the change of the size of the pole plate;
● The transport line of the pole piece is more stable than that of the vacuum belt,
avoiding the problem of grabbing misalignment and grabbing damage of the pole
piece by the vacuum belt;
● Integrated function: The machine can integrate the electrode size and defect
detection, the electrode brush powder function, the battery hot pressing, the battery
short circuit test and other functions.
● CCD visual positioning system, servo motor + precision ball screw positioning and
moving, X, Y, @ positioning accuracy, high stability;
● Diaphragm automatic unwinding, improve the machine utilization;
● Separate control at the dust generation of the machine: such as uncoiling,
independent one area, die cutting one area, and work in the area that produces more
dust, no waiting phenomenon, high efficiency;
Improve the utilization rate of the whole machine;
(die cutting area) add FFU, extract the environment of the floating powder, (die cutting
area) add FFU, extract the environment of the floating powder,
Folding machine Model: D300F-B Folding machine model: D300F-C
功能特點Functional features：
? 一次性多片疊，單疊臺可實現300個PPM，周轉次數少，效率高，極片 損傷減少，一體化設計，場地、人力成本降低3~5倍。
? 極片尺寸大，最大可以做到1000*500mm
? One-time multi-piece stack, single stack can achieve 300 PPM, less turnover times, high efficiency, pole piece damage reduction, integrated design, site, labor costs reduced 3~5 times.
? The pole size is large, the maximum can be 1000*500mm
機器型號Machine type | 對位精度 Counterpoint accuracy | 疊片效率Lamination efficiency | 疊片頭/工位Stack head/station |
J1000D-DP | ±0.3mm | ≥300PPM | 1/8 |
